Clearing the Air with Clarity: Mastering 3D Widow Systems Mist Collector Modelling for Industrial Filter Assembly Visualization
In the complex world of industrial machinery and manufacturing solutions, clarity in presenting intricate equipment is paramount for sales, technical training, and maintenance. Our project focusing on 3D Widow Systems Mist Collector Modelling and Rendering exemplifies how meticulous digital craftsmanship can transform a functional piece of machinery into a visually compelling and easily understandable static asset. This case study highlights our expertise in creating a high-fidelity Widow Mist Collector model, perfectly suited for detailed industrial filter assembly visualization and impactful technical marketing.
The Challenge: Precisely Visualizing Complex Internal Components and Technical Functionality
A client, “Widow Systems,” a manufacturer of industrial air filtration solutions, required a sophisticated and photorealistic 3D model of their Mist Collector system. The core challenge was to accurately model every external and internal component of the unit, from its robust outer casing down to every fan blade, filter, duct, and electronic element. This involved meticulous attention to detail for precise dimensions, material properties, and component relationships, allowing for clear illustration of its operational principles. They needed a 3D model that could serve as a versatile asset for product catalogs, sales presentations, technical manuals, and online product viewers, emphasizing a strong mist collector modelling and functional visualization through high-quality static renders.
Our Solution: Precision Modelling, Layered Transparency, and Informative Rendering in Blender
Leveraging the advanced capabilities of Blender, our team undertook a comprehensive approach to bring this 3D Widow Systems Mist Collector to life:
- Detailed 3D Industrial Filter Modelling: We began with meticulous modelling of the Mist Collector, from its robust outer casing down to every internal fan blade, filter cartridge, and airflow pathway. Accuracy in capturing dimensions, bolt patterns, and connection points was critical. Each component was constructed with engineering precision, ready for close-up examination. This foundational 3D industrial filter modelling is crucial for technical precision.
- Blender Assembly Rendering with Photorealistic Materials: A crucial aspect was achieving the convincing look of various industrial materials—painted metal, rubber seals, filter media, and transparent viewing panels. We employed sophisticated physically-based material shaders in Blender to accurately simulate light interaction, including reflections, subtle imperfections on metal, and the unique textures of the filters. The Blender assembly rendering phase was optimized to deliver stunning visual fidelity, making the machine appear robust and functional.

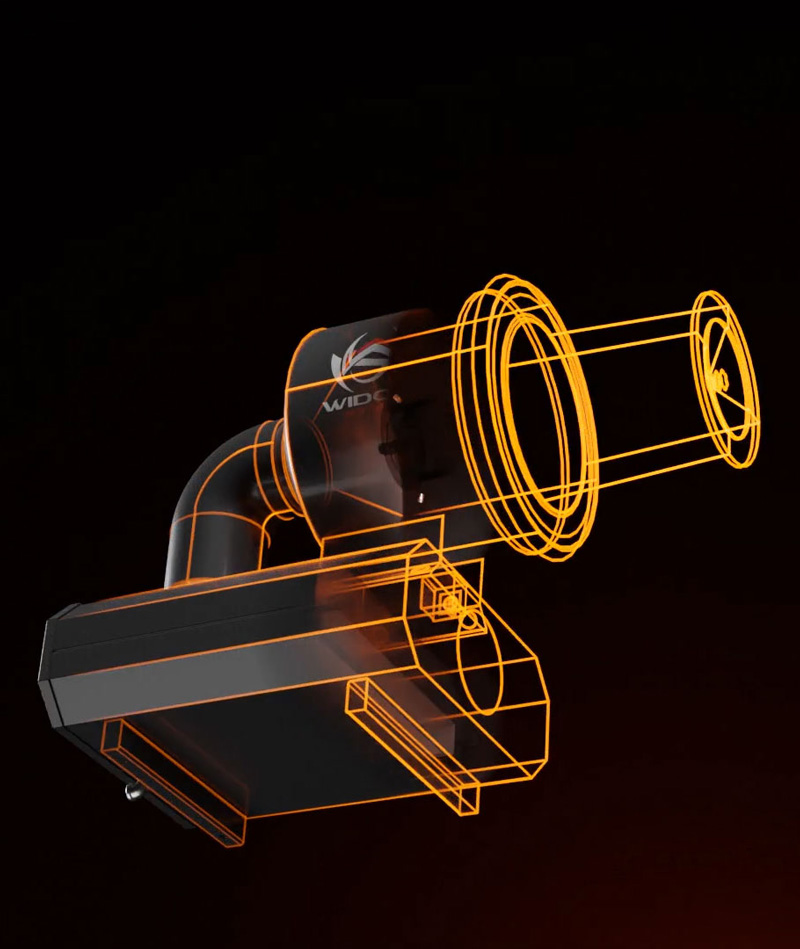

- Filter System Visualization with Strategic Presentation: To clearly demonstrate the internal workings and facilitate filter system visualization, we prepared renders that effectively showcased the assembly. This could involve clean, well-lit views of the full unit, or carefully composed shots with implied cutaways or strategically placed transparent elements on the model’s casing (if part of the design) to reveal internal mechanisms. The goal was to provide maximum clarity for the mist collector modelling.
- High-Resolution Output for Technical Marketing: The final rendering process was executed using Blender’s Cycles engine, ensuring clean, sharp, and high-resolution visuals. The lighting was meticulously set up to ensure all components were clearly visible and easy to distinguish, perfect for high-impact industrial equipment visualization in brochures, technical specifications, and digital catalogs. These renders serve as powerful tools for technical marketing.
- Versatility for Product Presentations: The resulting Widow Mist Collector 3D model is incredibly versatile. It can be used for detailed static images in product catalogs, interactive 3D viewers on websites (if converted for web), or high-quality visuals for internal and external presentations, offering a cost-effective alternative to physical prototypes or complex photography setups.
The Impact: Enhanced Product Understanding and Streamlined Technical Communication
The client was exceptionally pleased with the 3D Widow Systems Mist Collector model. The stunning visual fidelity, detailed internal components, and clear presentation of its functionality significantly enhanced their ability to communicate the benefits and operation of their product to a diverse audience, from potential buyers to maintenance technicians. This led to more effective sales pitches and clearer technical support. This project stands as a prime example of our proficiency in delivering top-tier 3D modelling and rendering services, transforming complex industrial machinery into visually compelling and highly effective tools for superior industrial filter assembly visualization.
For more examples of our detailed 3D modelling and rendering work, particularly focusing on industrial equipment, mechanical assemblies, or technical explanations, be sure to explore our portfolio. You might find our work on the 3D Fishing Rod Exploding Modelling and Animation particularly interesting for another perspective on illustrating internal mechanisms. You can also find this Widow Mist Collector model, and many others, available for purchase or viewing on CGTrader.
